WHY BUY FROM US
Save on Custom Duty while importing. Post GST, custom duty is approx 38% of total invoice value ( item cost + shipping) for retail buyers. Get your items faster - Shipped within 2-3 days of payment, reach you within 3-4 working days after shipping (when lead times not specified). We take full responsibility of all items reaching you safely and provide complete support for the kits we sell and above all you get a product MADE IN INDIA. Products from Brownbull CNC can be contacted by mail, all queries regarding the products and technical issues will be solved by technical team by mail.
One week lead time from the date of purchase.

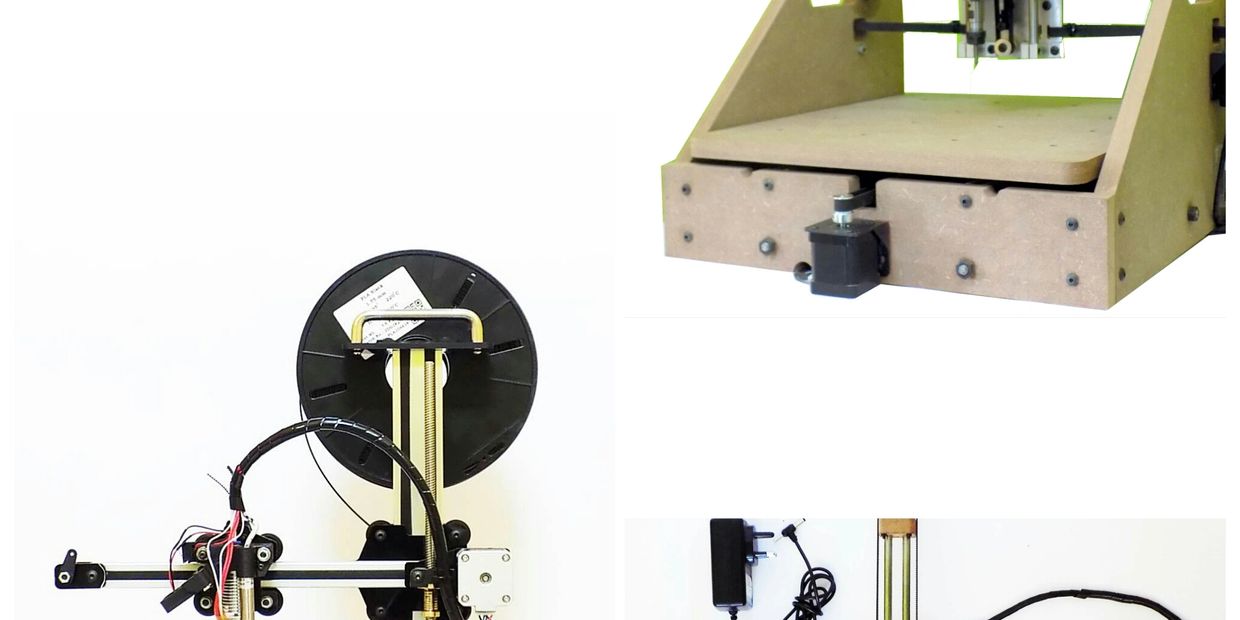

DESKTOP CNC
The kit includes all the machine parts, The Spindle mount is 52mm on default. Spindle has to be purchased as an Add on kit. A 12 volts power supply is supplied with the machine. In order to get more power and performance from your Nema 17 motors you can upgrade to 24 volt power supply.
The software you need is free. Autodesk offers all hobbyists a free license (not a trial) for design software called Fusion 360. Universal G Code Senderis a free program that is used to control the machine. BROWNBULL CNC strictly does not support on designing or machining software (CAD/CAM).
Standard Features: Aluminum bearing plates V slot rails on X&Y axes with acetal V wheels Linear rods on Z Axis with linear bearing blocks CNC routed MDF frame High torque NEMA 17 stepper motors Steel motor mounts for the X & Y 9mm fiberglass reinforced GT2 timing belts Mechanically advantaged belt driven Z Axis for fast lifts Space efficient moving bed design Pronged tee nuts in the bed for easy work holding Original Arduino Uno R3 made in Italy, with cable Grbl compatible stepper driver shield and DRV8825 drivers 12 Volt power supply
Working Area : 250mm × 250mm × 50mm
CNC MILL
Material machinable: Soft metals-Aluminium,Brass Wood, Acrylic, Corian, PVC
Vinyl cutter: Foam ,Vinyl sheet(sticker cutting).
Drag engraving:Aluminium,Brass,Acrylic.
LASER MARKING MACH
Laser marking: Wood,Acrylic,Plastic.
Laser cutting: Foam board,Vinyl sheet(sticker cutting).
3D PRINTER
Brownbull 3D printer lowcost. Print Size 200mm×200mm×180mm. Reptier Host, Auto Bed level, Mk8 extruder, 2M FILAMENT, LCD Screen mount,
2mm glass surface, Ramps 1.4 DRV 8825 drives. Print speed 60mm/sec.Can be upgradable to heat bed and power supply.
The software you need is free. Autodesk offers all hobbyists a free license (not a trial) for design software called Fusion 360. Reptier Hostis a free program that is used to control the machine. BROWNBULL 3D PRINTER does not support on designing software.
The kit includes all the machine parts, The software you need is free. Autodesk offers all hobbyists a free license (not a trial) for 3d design software called Fusion 360. Free trial prints are available on Thingiverse.
Reptier Host is a free program that is used to control the machine. Standard Features: 5mm Acrylic bearing plates V slot rails on X&Y axes with acetal V wheels Leadscrew on Z Axis for accurate lifts .High torque NEMA 17 stepper motors, 6mm fiberglass reinforced GT2 timing belts, Space efficient moving bed design Spring adjustable bed for initial bed leveling, Arduino Atmega with ramps DRV8825 drivers, with cable , 12 Volt, power supply, 2 Meter FILAMENT, LCD Screen mount.
DRAWBOT
Brownbull Drawbot Plot Area: 200mm×300mm A4 size, Generic Arduino UNO R3 with CNC shield DRV 8825 drives Nema 17 motors, 8mm ss rods. It can load TSP files,
stipple, Raster files. Runs on open software UGS, Rabbit source, Homework writing machine,
The software you need is free. Autodesk offers all hobbyists a free license (not a trial) for design software called Inkscape. Universal G Code Senderis a free program that is used to control the machine. BROWNBULL DRAWBOT does not support on designing software.
Drawbot is similar to the commercially available Axidraw. It is powered by Arduino UNO controller. Uses CNC shield and GRBL Firmware. The drawings can be done on Inkscape with MI extension and coded through universal Gcode Sender.
Linear rods(8mm ss), Linear bushes are 3D printed,
NEMA 17 stepper motors, 12V power supply
6mm fiberglass reinforced GT2 timing belts.
Note: may contain few 3D printed parts.
